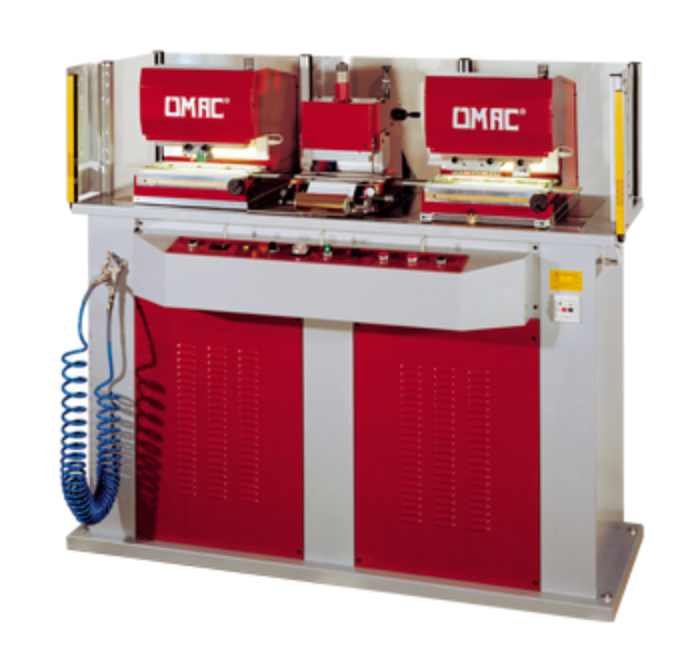

Used OMAC 735 Hydraulic Double End Belt Punching Machine

Note: Where/when listed, please DO NOT select "Misc. In-Store Only" for online orders. This is a catch-all option, and is reserved for miscellaneous items only available in one of our retail stores.

A used OMAC 735 hydraulic two-head punching machine for cutting and punching both ends of belts, straps, collars, leashes, and similar leather goods. This machine is in very good condition and is well-suited for leather shops, belt makers, and production environments looking to speed up repeatable belt-end cutting and punching.

Pictures: Specific pictures, images, and videos of this machine are coming soon.

Details

We are offering a used OMAC 735 Hydraulic Punching Machine with Two Heads, also commonly referred to as a double-end belt cutter or belt-end punching machine.

The OMAC 735 is designed for production work where repeatability, speed, and clean end cutting are important. According to OMAC, this model is used to cut and punch the tip and end of belts, handbag shoulder straps, pet collars and leashes, backpack straps, and other leather or eco-leather strips.

This machine is especially useful for shops producing leather belts or straps in volume, allowing the operator to cut or punch both ends with a controlled hydraulic setup instead of handling each end separately by hand.

Our machine is in very good used condition. It came from a professional leather production environment and appears to have been customized or set up for longer belt work. We also have a selection of dies and miscellaneous parts available with the machine.

Key Features

• Used OMAC 735 hydraulic two-head punching machine
• Designed for cutting and punching belt tips and belt ends
• Useful for belts, shoulder straps, collars, leashes, backpack straps, and other leather strips
• Two cutting heads with independent hydraulic units
• Heads can move electrically left or right, individually or simultaneously
• Manufacturer-listed maximum opening: 1450 mm
• Microprocessor-controlled operation
• Infrared safety barrier
• Two-button timed synchronous drive control
• Electronic counter
• Very good used condition
• Includes available dies and miscellaneous parts

Manufacturer Technical Details

OMAC lists the following technical data for the 735 model:

Source: OMAC product specifications for the 735 Hydraulic Punching Machine with Two Heads.

Condition

This is a used industrial machine in very good condition. It has been stored indoors and was previously used in a professional leather shop environment.

Please note: this is a three-phase industrial machine. We are currently unable to power it on in our shop due to electrical requirements, so it is being sold as a used machine based on its visible condition and known prior use.

Included With Purchase

• OMAC 735 hydraulic two-head punching machine
• Available cutting/punching dies
• Miscellaneous related parts and accessories currently with the machine

Final included accessories should be confirmed before purchase.

Pickup, Shipping, and Freight

This machine is large and heavy. OMAC lists the net weight at approximately 510 kg (1,124 lb).

Buyer is responsible for pickup, freight, crating, rigging, and transportation unless otherwise arranged in advance.

Located at:

Odin Leather Goods
Lewisville, Texas

Important Sale Terms

This is a used industrial machine and is sold as-is. We strongly recommend that buyers inspect the machine in person or request additional photos and video before purchase. No warranty is expressed or implied.
